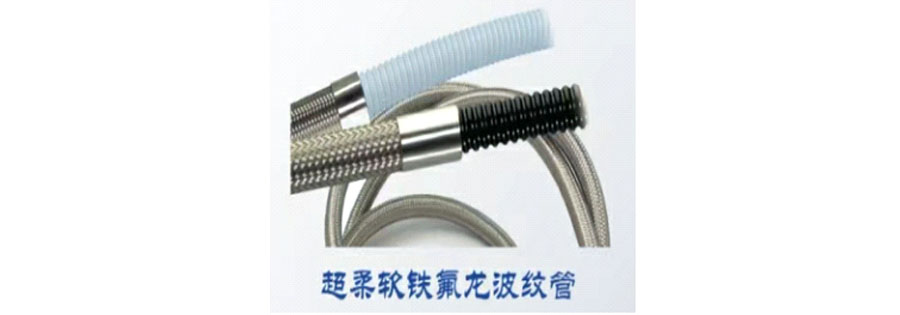

Super soft Teflon bellows

Release time:2022-11-18 Browse:229





1、 Product structure: PTFE corrugated pipe+304 or 316 single-layer or double-layer stainless steel wire steel braided



2、 Product performance:

1. Operating temperature range: - 65 ℃~+260 ℃

2. Corrosion resistance, high temperature resistance and melting resistance

3. Non viscous, non wet, non combustible

4. Low permeability, low friction coefficient

5. Weathering resistance

6. Good electrical performance

3、 Product introduction:

1. Material: super soft PTFE bellows with high temperature resistance and chemical resistance+single layer or double layer stainless steel wire steel braid.

2. With small bending radius, super flexibility and anti twisting property, the tubing can expand and contract frequently with the machine in high temperature environment, with long service life and reduced replacement times.

3. Inner tube: 100% polytetrafluoroethylene resin, without any pigment and additive.

4. Braid layer: 304 or 316 stainless steel wire can be selected.

5. Used for steam pipe of curing press (applicable to curing press of all models)

Note: All braided pipes can increase the anti-static (including carbon) performance

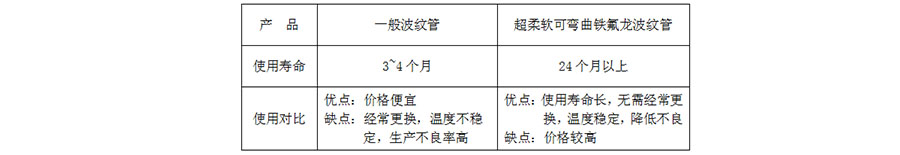

4、 Comparison between Teflon bellows and stainless steel bellows:

1. Teflon corrugated pipe has good bending performance, super flexibility and anti twisting property. It can expand or expand the oil pipe frequently with the machine repeated under high temperature environment, with long service life and reduced replacement times.

2. Teflon corrugated pipe is fatigue resistant, bearing high pressure and pulse

3. Teflon tube crimping joint is firm and not easy to fall off

4. Stainless steel corrugated pipe can resist high temperature, but the pressure resistance is generally about 30KG

5. The stainless steel corrugated pipe has poor bending property, and the welding spot is easy to crack and the welding joint is easy to fall off when it is often bent



*Note: If the super soft and bendable Teflon bellows leaks within 24 months of use, our company will replace the defective products for free. If you need to try the product, our company has 1 * 1600mm (1 * 1.6m) specifications, and the connector specification is American 1 "PH, and other specifications need to be customized.

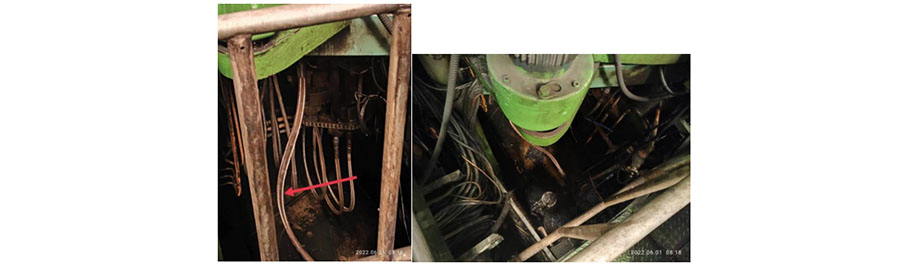

5、 Product installation location
