Mitsubishi 51 type sealing ring

Release time：2022-06-16 Browse：380




product description:


Material: Fluorine rubber FKM, FKM is a fully synthetic polymer elastomer material, the carbon atoms of its main chain or side chain are bonded with fluorine atoms. Fluorine rubber is fully synthetic rubber,


Compared with other rubber materials, fluorinated rubber has higher tensile strength and structural strength in terms of physical properties. Static seals can work for a long time in an environment of 230 degrees Celsius, and the instantaneous high temperature can reach 250 degrees Celsius.


Brand: Mitsubishi 51 hydraulic cylinder (made by Mitsubishi)


Specifications and dimensions: the original matching sealing ring in the Mitsubishi 51 hydraulic cylinder (the size of the Mitsubishi 51 vulcanizer imported from Japan is the same as that made in China)


product composition:


1. Fluorine rubber O-ring, O-ring is AED anti-explosive decompression material


2. Teflon


3. Teflon + copper powder

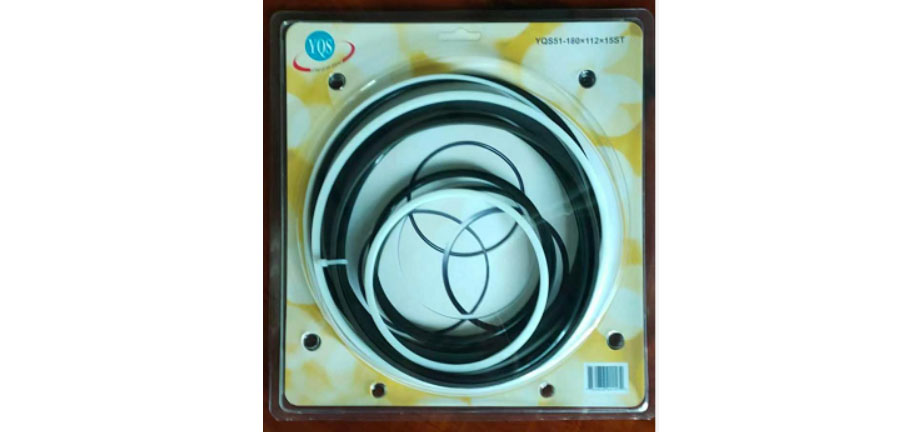

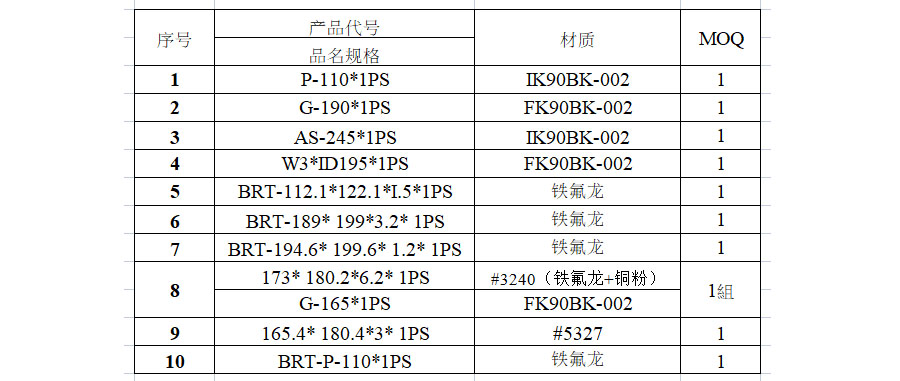

Product content includes:



Installation location

Type 51 hydraulic cylinder

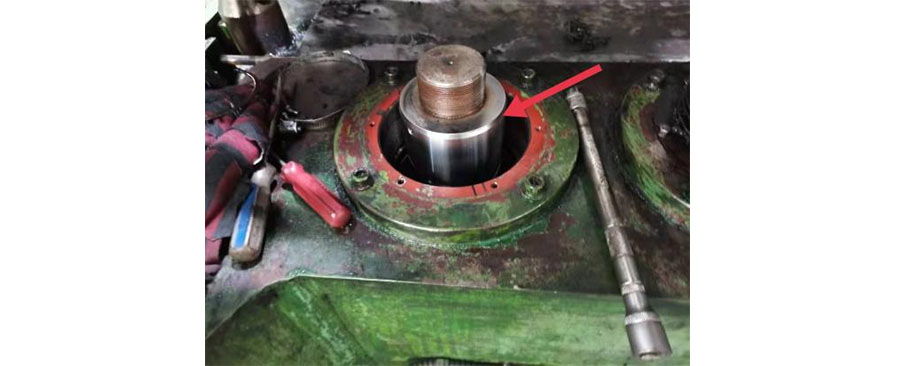

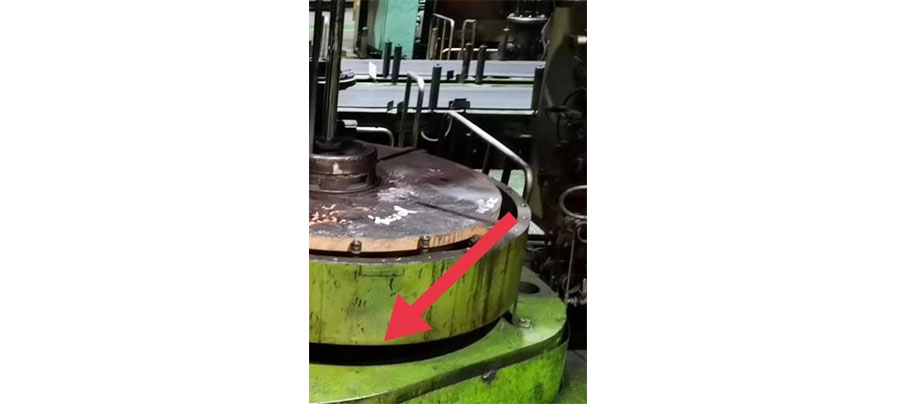

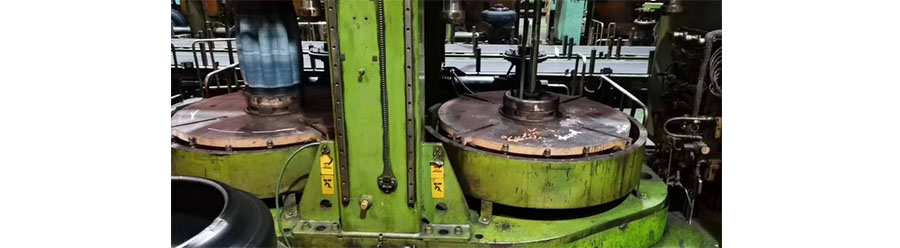

The following picture 1 is the Mitsubishi 51 type vulcanizing machine, and the inside of the arrow in picture 2 is the hydraulic cylinder, each set of machines has 3 on the left and right, and a set of 6 hydraulic cylinders is a set. Picture 3 is picture 2. After disassembling, if the arrow points to the oil leakage, the sealing ring needs to be replaced.


Figure 1


Figure II


Figure 3

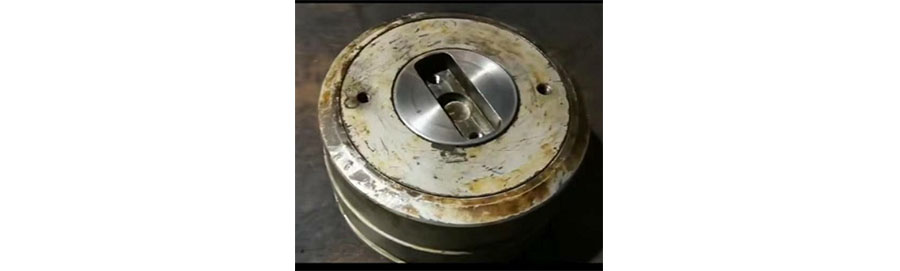

The following picture shows the hydraulic cylinder, and the sealing ring is installed inside the hydraulic cylinder.





Note: The above products can provide a set of free trial for your company, if you need other specifications, please provide samples or models to facilitate production.
